PEGASEM PFS-Series
Pedal Force Sensor

The PEGASEM PFS pedal force sensors have been developed for homologation tests of vehicle brakes. Many testing procedures demand the exact recording of the pedal force applied during a brake test, e.g. ECE R-13, ECE R-90, DIN70028, MVSS135 , MVSS121. To mount the sensor, a separate Velcro® “spider” is fitted around the pedal. The sensor is then easily attached to the top of the “spider”. The Velcro® “spider” attaches the sensor to any pedal size, making it suitable for passenger cars and commercial vehicles. The sensor comes with a built in amplifier and has a digital output for triggering external measurement equipment. The trigger level is 5% of the full scale and can be programmed before delivery.
The optional display can be easily fitted to the windshild by means of a ball joint and a suction cup. It can be supplied together with the sensor directly from the DAQ-system or from a separate power input. PEGASEM PFS Sensors stand out from other brands because they are robust, compact and very cost-effective.

Features
• Measurement Range: 0 - 1000N
• Built in Signal Amplifier
• Error class: 1%
• Separate Switching Output
• Supply Voltage Range: 5 - 30V
•  Velcro® Fasteners for easy and reliable attachment to the pedal
• Compact Design. Activation plate is only 25mm over top of pedal
• Robust
•  Cost-effective

Applications
 • Brake Pedal Force Measurement
• Vehicle Brake Homologation
• High Precision Trigger for Brake Testing Equipment

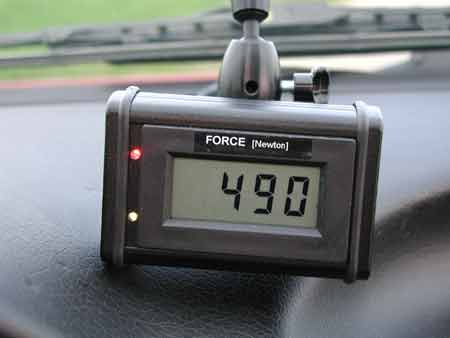

PFD - Pedal Force Display

Technical Data:

PFS 1000









Measurement Range

0



1000

N

Output Voltage (PFS1000-1)

0



1.000

V

Output Voltage (PFS1000-5)

0



5.000

V

Force Signal Output Current





10

mA

Trigger Out Current
Open Collector Output, active low





50

mA

Supply Voltage (-1 Versions)

5



30

VDC

Supply Voltage (-5 Versions)

6



30

VDC

Force Overload





150

%

Hysteresis





0,5

%

Total Error





1

% of FS

Trigger Level

45

50

55

% of FS

Supply Current

20

25

mA

Temperature Range

-20



60

°C

PFD (Pedal Force Display)
Display Range 0 1000 N
Power Supply 6 30 V
Supply Current 15 mA



Mechanical Dimensions





Sensor

46 x 45 x 25 mm

L x W x H

Cable Length

4

m

Velcro® Spider Leg Length

20

cm

Sensor Weight

200

grams

Cable Socket at DAQ Side

open ends, or 7 pole female Binder Series 712

Cable Socket at Sensor Side

fixed
Sensor Display 80 x 33 x 58 LxWxH
Display Weight 250 grams

Ordering Information:

Type

Comments

PFS1000-1-OE

Pedal Force Sensor, 1000N, 1V @ 1000N, 4m cable with open ends

PFS1000-5-OE

Pedal Force Sensor, 1000N, 5V @ 1000N, 4m cable with open ends

PFS1000-1-B712

Pedal Force Sensor, 1000N, 1V @ 1000N, 4m cable with B712 connector

PFS1000-5-B712

Pedal Force Sensor, 1000N, 5V @ 1000N, 4m cable with B712 connector

PFD-1

Pedal Force Display, 1V @ 1000N

PFD-5

Pedal Force Display, 5V @ 1000N
CAB-490600-2 Battery Power Cable, 2m, with Cigarette Lighter Connector
CAB-490601-2 Battery Power Cable, 2m, with Banana Plugs
CAB-230790-4 PFD DAQ-Extension Cable, 4m with connector B712-7 (for Pegasem DAQ units
CAB-230791-4 PFD DAQ-Extension Cable, 4m with open ends (for user mounted connectors)



Download Datasheet: PDF, 263KB
